Xenondepot.com HID kit / '15 Prius Persona

Discussion in 'Gen 3 Prius Accessories and Modifications' started by 4rpr15, Jul 18, 2015.

Page 2 of 3
  1. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    I was considering these for the parking lights and for the license plate bulb. Has anyone tried them?
    T10 XB LED Headlight marker turn signal interior COB bulbs blinkers T10 194

    How hard is it to install these for the parking light? I'll have to search for a video. There's a local shop would charge $90 to install the 5000k hid kit I mentioned above. I could do it myself, but I am not 100% I would do it correct. Good deal or ripoff?


    '15 Prius Persona-Blizzard Pearl

    #21 4rpr15, Jul 21, 2015
  2. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    45,128
    16,358
    41
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Super easy to install (otherwise I wouldn't have replaced them so many times lol). It helps if you have smaller hands to remove/install the bulbs but it's doable with adult hands. It's just a twist-lock mechanism.

    For the HIDs, it's a bit more involved. My unit only had one power cable on the driver's side so it ran a long cable to the ballast on the passenger side. This just meant I had to ensure that the passenger side OEM power attachment is sealed off to prevent dust from accumulating (if/when I go back to the OEM halogen setup).

    The hardest part of installation is deciding where to mount the ballasts. Mobile HID's ballast are rather large compared to the others (like the one in the first thread I link below, he says he squeezed it between the fuse box and the body of the car. My ballasts definitely won't fit)

    Here are some old threads with pictures to help you out!

    DIY: HID Install for H11 | PriusChat

    Here's one on the Morimoto kit
    Xenon HID? | PriusChat

    We'll see if we can get some of the guys who are more knowledgeable of HIDs into this thread :)

    @F8L and @sfv41901, care to chime in?

    #22 Tideland Prius, Jul 21, 2015
  3. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    I'm going with the Canbus relay instead of the hd relay so that should make it easier according to TRS. Do I have to drill holes in the dust cover to get the wiring to fit in?


    '15 Prius Persona-Blizzard Pearl

    #23 4rpr15, Jul 21, 2015
  4. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    45,128
    16,358
    41
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    If you get the right H11, it's a direct plug & play. I did not have to modify anything on my car and it's completely reversible with my kit.

    Oh and there's no dust cover on the Gen 3 like there was on the Gen 2.

    #24 Tideland Prius, Jul 21, 2015
  5. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    Yes they told me to get the h11b.


    '15 Prius Persona-Blizzard Pearl

    #25 4rpr15, Jul 21, 2015
  6. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    45,128
    16,358
    41
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Ok (I actually didn't know there was an "a" and "b" version).

    #26 Tideland Prius, Jul 21, 2015
    4rpr15 likes this.
  7. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    But I'm worried that the Canbus relay isn't an option when I choose a '15 Prius on their site. That's what they told me to get so I don't have to worry about the hd relay harness installation issues. I had to order the Canbus without selecting the type of car that I have so I hope they are correct.


    '15 Prius Persona-Blizzard Pearl

    #27 4rpr15, Jul 21, 2015
  8. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    45,128
    16,358
    41
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    This thread mentions something about a ground wire shadow.

    XeonDepot or TRS HID retrofit kit | PriusChat

    I have no idea what it is (seems to be limited to that particular kit) but maybe check with a few members here about it.

    Try a different year like 2014 or 2013. (Don't choose 2010 or 2011. Even if they use the same H11 bulb, the headlight assembly is slightly different so just to be on the safe side, choose 2012 or newer)

    #28 Tideland Prius, Jul 21, 2015
    Last edited by a moderator: Jul 23, 2015
    4rpr15 likes this.
  9. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    What I did is just clicked on the kit under hid systems and chose the bulb and harness manually.


    '15 Prius Persona-Blizzard Pearl

    For the parking lights. Is it just a matter of reaching under and unscrewing the bulb and adding the new bulb in?


    '15 Prius Persona-Blizzard Pearl

    I wonder if I can install this hid kit without the Canbus relay.


    '15 Prius Persona-Blizzard Pearl

    #29 4rpr15, Jul 21, 2015
    Last edited by a moderator: Jul 23, 2015
  10. cyclopathic

    cyclopathic Senior Member

    Joined:
    Apr 15, 2011
    3,292
    547
    0
    Location:
    2014 Prius c
    Vehicle:
    2010 Prius
    Model:
    II
    This one is pricy
    I've used kensun and no-name HID kits (4 in total) and IMHO 55 watt kit is overkill. 35w gives plenty of light (50-80% more than halogens) and going above that would just blind oncoming traffic. It is also said that 55 watt kits overdrive bulbs, causing bluer light and premature bulb death.

    BTW the $30 kits work as well as their more expensive counter parts, but the QC on those not on par; had one dead on arrival ballast.

    #30 cyclopathic, Jul 21, 2015
  11. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    I ended up going with TRS.


    '15 Prius Persona-Blizzard Pearl

    #31 4rpr15, Jul 21, 2015
  12. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    45,128
    16,358
    41
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Well, unscrewing the bulb holder (really just a 1/4 turn), then pulling out the holder so that you can access the bulb and then pull the bulb out (no need to twist).

    I'm not sure. I think my unit is fairly basic.

    Oh and you can put the "'15 Prius Persona-Blizzard Pearl" in your signature through your profile management. Right now, it's just sitting in the body of each post. A signature is situated below the dotted line in the forum

    #32 Tideland Prius, Jul 21, 2015
    Last edited by a moderator: Jul 23, 2015
  13. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    I use Tapatalk and if I turn it off it won't show up anywhere so everyone would keep asking what type of Prius I own.


    '15 Prius Persona-Blizzard Pearl

    Any drilling of the dust cover required?


    '15 Prius Persona-Blizzard Pearl

    #33 4rpr15, Jul 22, 2015
    Last edited by a moderator: Jul 23, 2015
  14. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    45,128
    16,358
    41
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    No drilling was required for my unit. As I said, it was plug & play and completely reversible.

    #34 Tideland Prius, Jul 22, 2015
    4rpr15 likes this.
  15. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    8,001
    3,192
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    H11 bulbs don't require dust covers, they have a gasket under the tabs that seals against the mounting hole.

    #35 xliderider, Jul 22, 2015
    4rpr15 likes this.
  16. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium

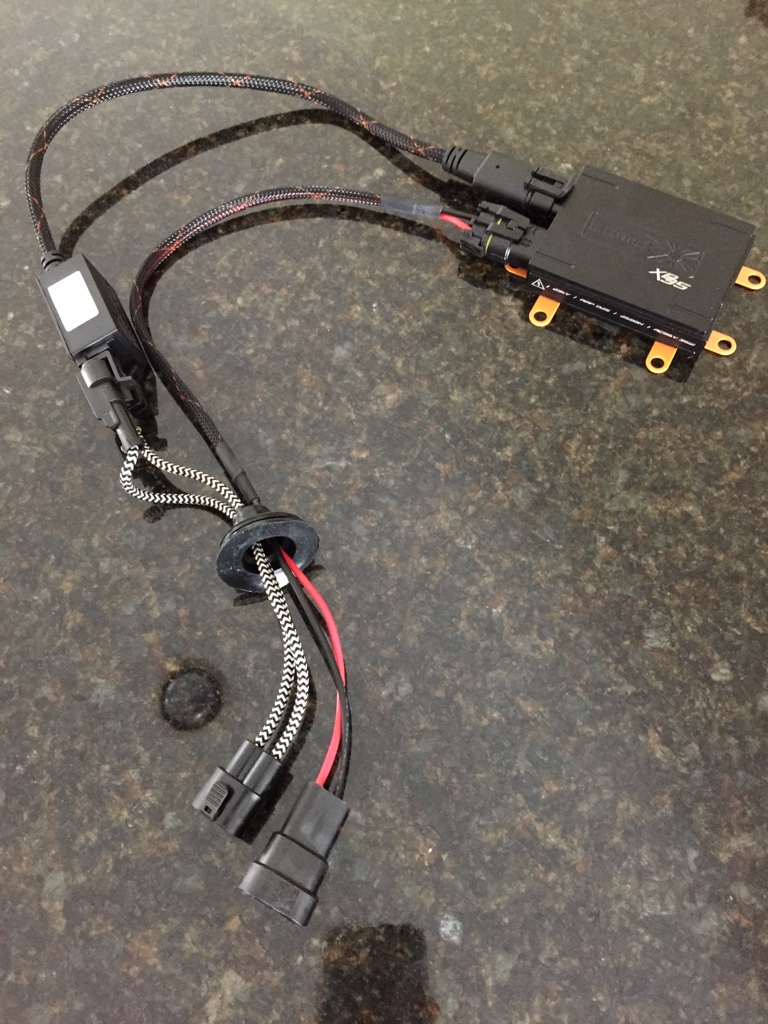

    Ready to install this bad boy.
    [​IMG]

    I'm lost on how the Canbus relay gets hooked up. Any help is well appreciated.

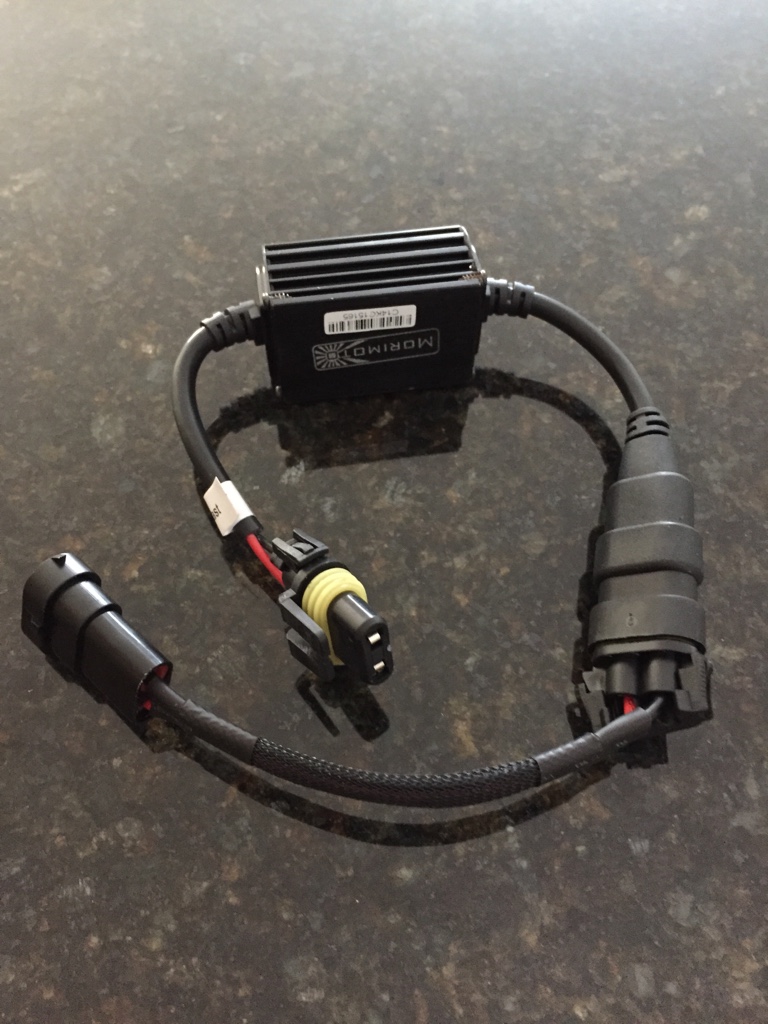

    Here's the Canbus.
    [​IMG]

    #36 4rpr15, Jul 23, 2015
    Last edited by a moderator: Jul 23, 2015
  17. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    8,001
    3,192
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    The Canbus relay just goes between the ballast and the factory plug to prevent errors. So still plug and play.

    You don't need the Canbus relay though.

    #37 xliderider, Jul 23, 2015
  18. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    I have everything plugged in without the Canbus, but the HID's won't turn on.

    #38 4rpr15, Jul 23, 2015
  19. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    8,001
    3,192
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    Common problem with Toyotas. Flip the plug connecting to the factory light harness, the one that would've gone to the original headlight bulb.

    It's the reversed polarity causing the problem.

    #39 xliderider, Jul 23, 2015
  20. 4rpr15

    4rpr15 Senior Member

    Joined:
    Jul 16, 2015
    1,056
    375
    0
    Location:
    WI
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    Canbus is needed. Works now. What's he best way of mounting the ballast? I can't believe they didn't supply me double sided 3M tape!

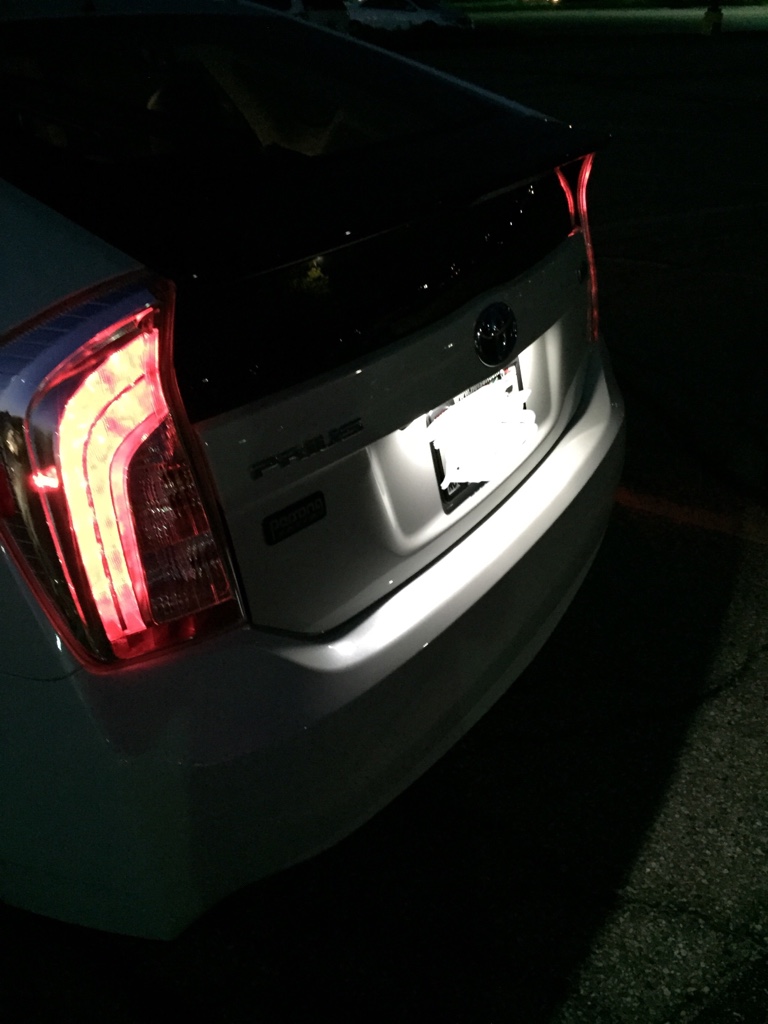

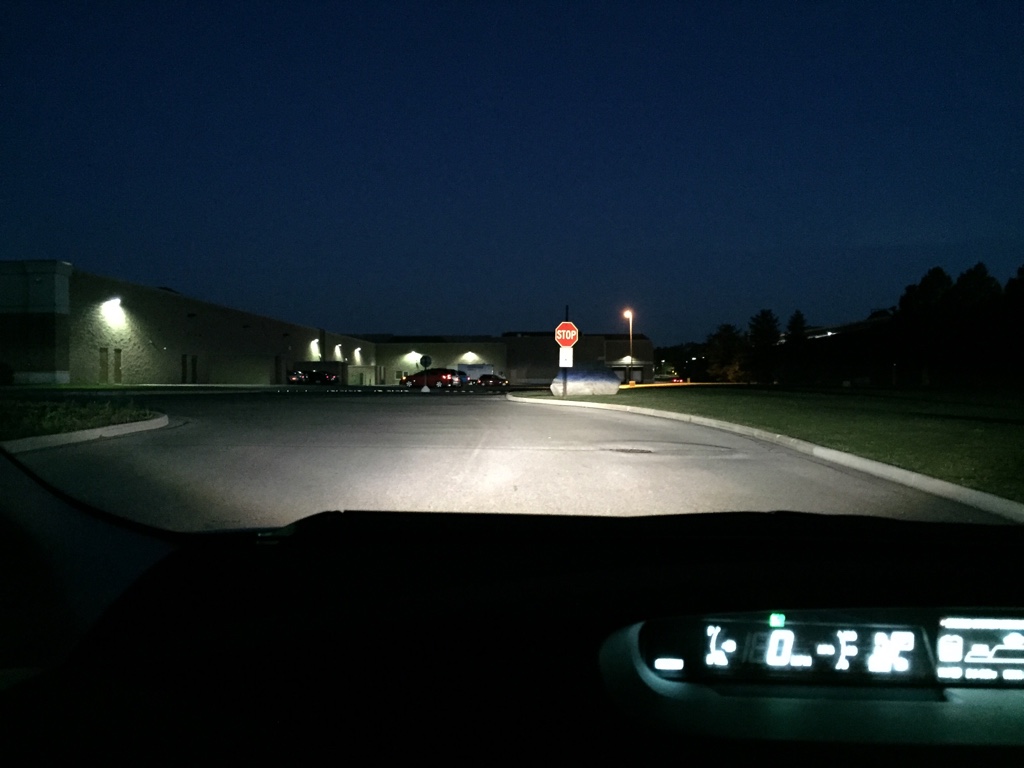

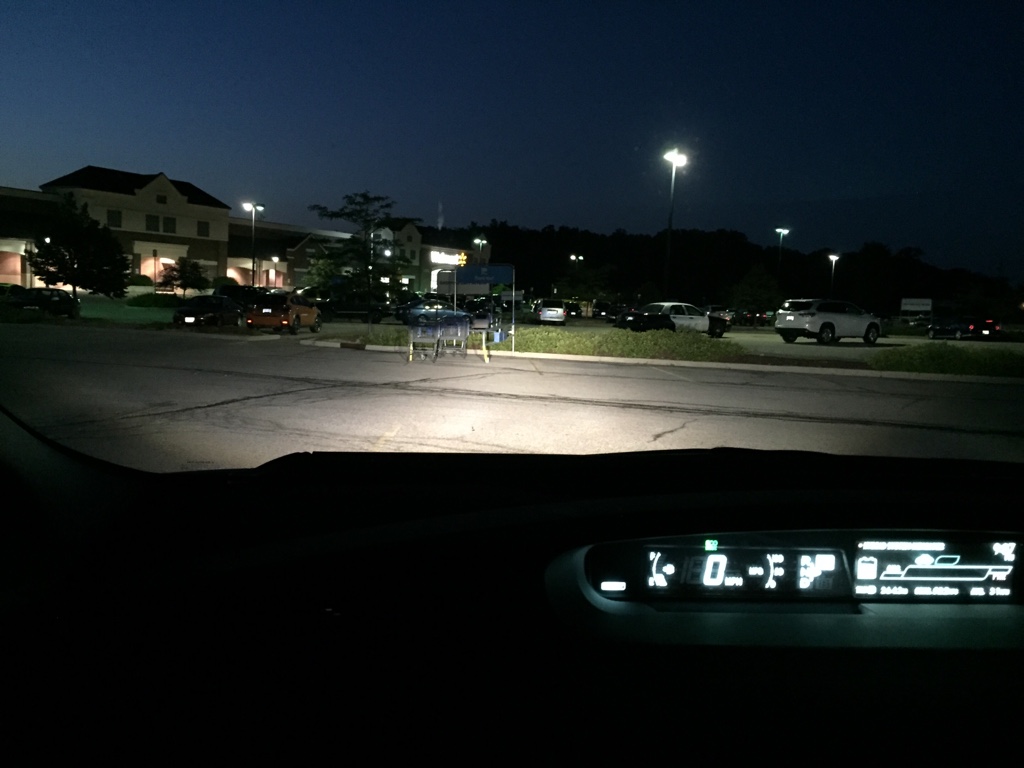

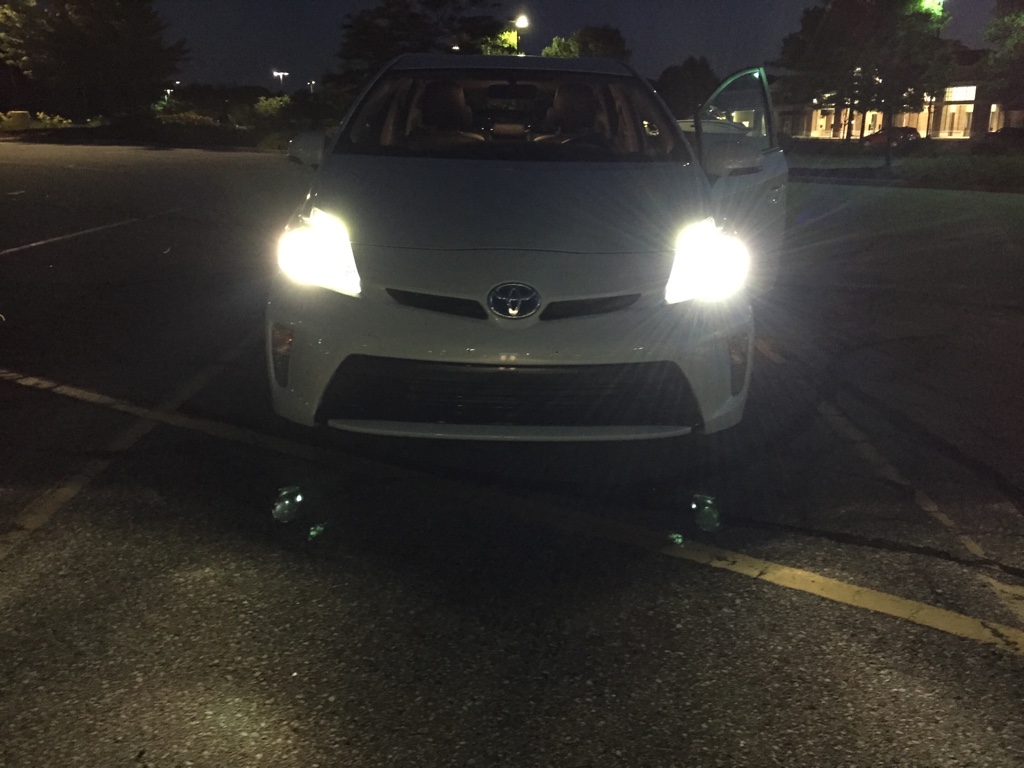

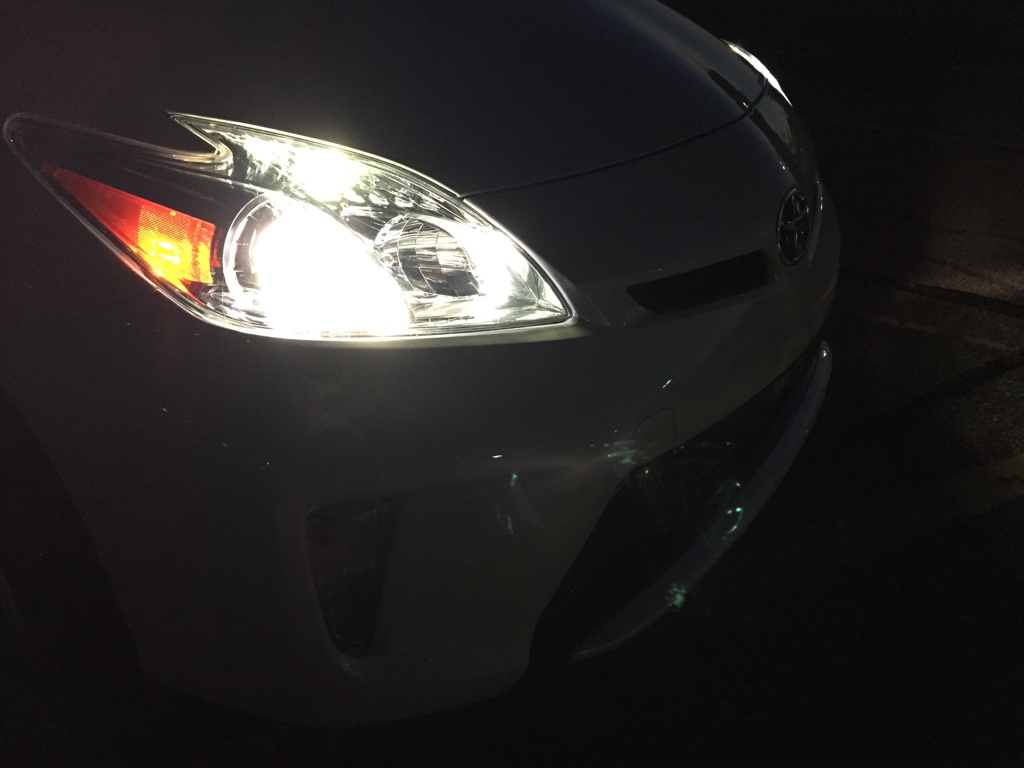

    Just got done with the HID's and LED parking lights and license plate lights.

    HID 5500k with Canbus relay.
    H11: Morimoto Elite HID System - HID Systems from The Retrofit Source Inc

    LED
    T10 XB LED Headlight marker turn signal interior COB bulbs blinkers T10 194

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    #40 4rpr15, Jul 23, 2015
